Saliency Image¶
There are some examples of getting “Vanilla” and “Guided” saliency images through using the python library of DNNBrain.

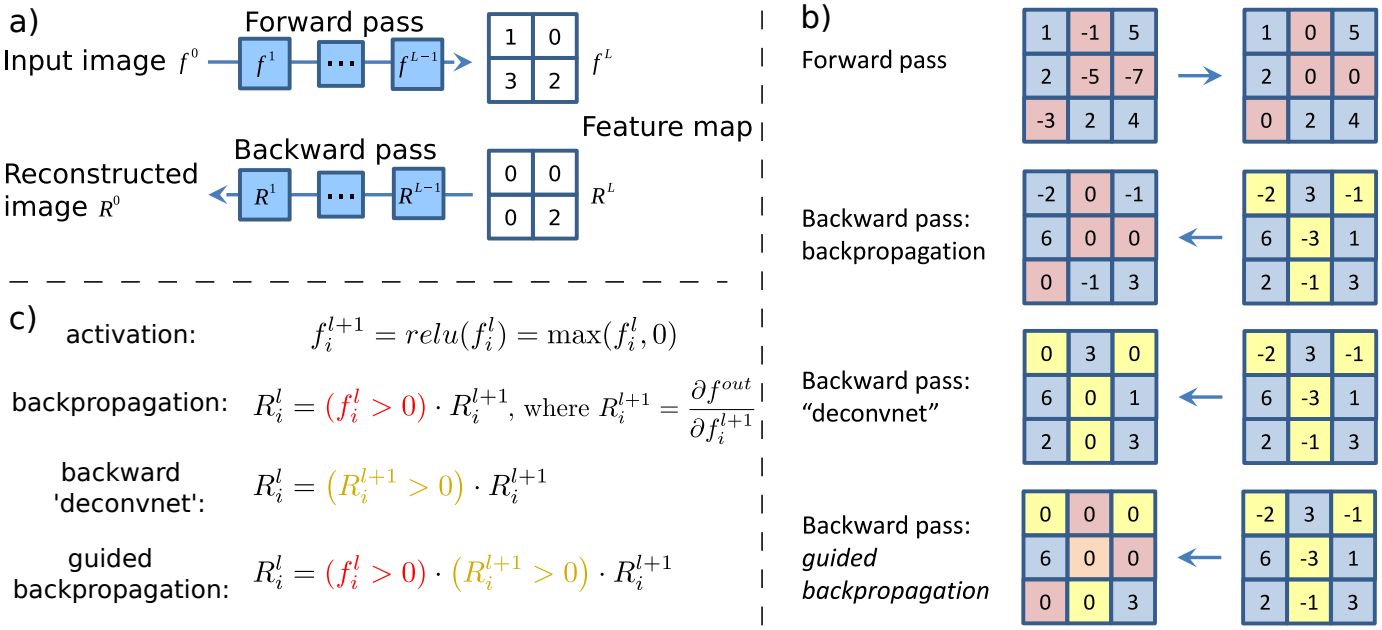

The saliency mapping computes gradients on the input image relative to the target unit, utilizing a backpropagation algorithm. It highlights pixels of the image that need to be changed the least to affect the unit’s activation the most (Simonyan et al., 2014; Springenberg et al., 2015). The sole difference between the Vanilla and Guided approaches is how they backpropagate through the linear rectifier (ReLU). Specifically, when handling the ReLU nonlinearity, both the two approaches restrict to the positive inputs. However, additionally, the Guided approach only backpropagates positive gradients. Please refer to the Figure 1 in Springenberg et al. (2015):
The original image used in this doc is displayed as below:
Example 1¶
Vanilla Saliency Image
import numpy as np
from PIL import Image
from dnnbrain.dnn.base import ip
from dnnbrain.dnn.models import AlexNet
from dnnbrain.dnn.algo import VanillaSaliencyImage
# Prepare DNN and image
dnn = AlexNet()
image = Image.open('n03223299_27176.JPEG')
# Get the vanilla saliency image of the image
# which displays the saliency parts that contribute to
# the activation of the 540th unit of fc3.
vanilla = VanillaSaliencyImage(dnn)
vanilla.set_layer('fc3', 540)
img_out = np.abs(vanilla.backprop(image))
# transform to PIL image and save out
img_out = ip.to_pil(img_out, True)
img_out.save('n03223299_27176_vanilla_saliency.JPEG')
The vanilla saliency image is displayed as below:
Example 2¶
Guided Saliency Image
import numpy as np
from PIL import Image
from dnnbrain.dnn.base import ip
from dnnbrain.dnn.models import AlexNet
from dnnbrain.dnn.algo import GuidedSaliencyImage
# Prepare DNN and image
dnn = AlexNet()
image = Image.open('n03223299_27176.JPEG')
# Get the guided saliency image of the image
# which displays the saliency parts that contribute to
# the activation of the 540th unit of fc3.
guided = GuidedSaliencyImage(dnn)
guided.set_layer('fc3', 540)
img_out = np.abs(guided.backprop(image))
# transform to PIL image and save out
img_out = ip.to_pil(img_out, True)
img_out.save('n03223299_27176_guided_saliency.JPEG')
The guided saliency image is displayed as below:
References¶
Simonyan et al., (2014). Deep Inside Convolutional Networks: Visualising Image Classification Models and Saliency Maps
Springenberg et al. (2015). STRIVING FOR SIMPLICITY: THE ALL CONVOLUTIONAL NET
https://glassboxmedicine.com/2019/06/21/cnn-heat-maps-saliency-backpropagation/
